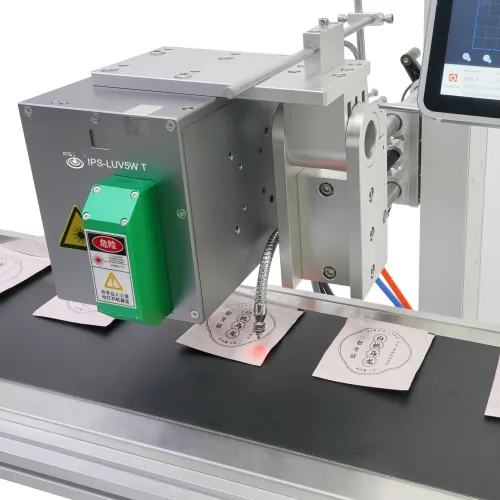

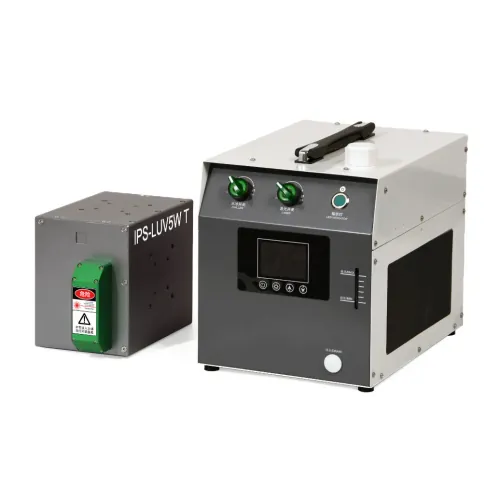

The Motoring® MGU5-T is an advanced UV laser marking system designed for online industrial coding applications. It offers clear, permanent, and high-resolution marking on a wide range of materials without the need for inks, ribbons, or other consumables. With a 5W UV laser source (355nm), it provides precise marking within a standard 100x100mm area (expandable up to 600x600mm). The system includes a marking head, control panel, and chiller, and supports various file formats, barcode types, and languages. Its compact design, fast marking speed (up to 12000mm/s), and compatibility with production line speeds up to 189m/min make it a versatile, cost-effective solution for food, beverages, cosmetics, electronics, pharmaceuticals, and more.
1. 355nm UV laser source, 5W power
2. Marking range: 100×100mm (standard), up to 600×600mm optional
3. High marking speed: ≤12000mm/s
4. Supports dot matrix and vector marking
5. Red light positioning and infrared focusing
6. Barcode support: Code39, Code128, QR, DM, and more
7. File formats: BMP, DXF, HPGL, JPEG, PLT

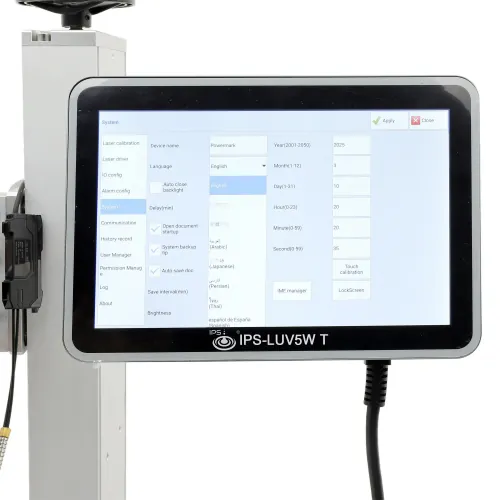

8. 10.1-inch external controller with multilingual interface
9. Embedded Linux OS
10. Interfaces: USB, photoelectric trigger, synchronizer
11. Water cooling system
12. Power: ≤750W, 100–240V AC
13. Operating temperature: 0–40°C
14. Compact and lightweight (28kg total)
The Motoring® MGU5-T is an advanced UV laser marking system designed for online industrial coding applications. It offers clear, permanent, and high-resolution marking on a wide range of materials without the need for inks, ribbons, or other consumables. With a 5W UV laser source (355nm), it provides precise marking within a standard 100x100mm area (expandable up to 600x600mm). The system includes a marking head, control panel, and chiller, and supports various file formats, barcode types, and languages. Its compact design, fast marking speed (up to 12000mm/s), and compatibility with production line speeds up to 189m/min make it a versatile, cost-effective solution for food, beverages, cosmetics, electronics, pharmaceuticals, and more.
